T7 Mobile Technology Cart

ERGO Info

Give your peepers a breather! Reduce eyestrain by taking regular vision breaks. Try looking into the distance two or three times an hour for 30 seconds.

Awards

Built for exceptionally intuitive, one-hand operation, the T7 is a revolutionary innovation in the TouchPoint line of mobile technology carts. Its Auto Fit™ technology instantly adjusts to each caregiver’s entered height, while its Power Track™ steering allows for virtually effortless maneuvering and complete user control. With a beautifully simple design, the T7 makes cleaning easy and promotes a healing environment.

Photography

V7 Install Shot
Check out our gallery of Wall Station installation images.
Click here to view

Responsible Design


Sustainability is the natural outcome of simple, elegant design.
Find out why

User Instructions Video

T7 training video thumbnail

Watch how easy the T7 is to operate >





Features

Standard Features

  • Revolutionary Auto Fit technology instantly adjusts to user’s entered height to accommodate the vast majority of users
  • Power Track steering uses an additional wheel to provide exceptional mobility
  • Intuitive digital command center ergonomically situates all controls within user’s shoulder width
  • Negative-tilt keyboard slides back, allowing palm rest to become a handle
  • One-hand operation and low center of gravity for easy ergonomic handling
  • SLA and Lithium Iron Phosphate battery options
  • Monitor arm enables provides 15 degrees of tilt and 90 degrees of rotation to facilitate patient care
  • Gantry serves as a back handle and contains cables, while raising the monitor above the work surface
  • Screen can be moved by user to desired position
  • Sophisticated and customizable cable management system offers easier cleaning, reduces infection control concerns and prevents the ingress of liquids
  • Toe clearance for sitting or standing
  • PC and laptop accommodation


Optional Features

  • Additional storage available with drawer layers and clip-on container options
  • Optional clip-on mouse platform with a cable management clip
  • Options for fixed or height-adjustable monitors
  • Two different tilting monitor arm options accommodate vast range of individuals, including those with bifocals



Features for powered and non-powered T7 Mobile carts may vary.



Technical Data

AC Power System
  •
9120 VAC, 60 Hz input
  •
120 VAC pure sine wave, 60 Hz, 150 W output
  •
150 VA, peak power up to 250 VA

Battery
  •
Sealed lead acid battery (SLA)—480 W (35 amp hour), 12 V output
  •
Lithium iron phosphate battery—12.8 V 655 WHr (51.2 amp hour)

Battery Level Indicator (BLI)
  •
Indicates charging status
  •
Battery level

Flat-Panel Display Dimensions
  •
The T7 accommodates most 15” to 21” flatpanel displays weighing up to 12.5 lbs.

Computer Dimensions
  •
 The T7 work surface can accommodate a computer up to 17.35” L by 12.3” W by 2.25” H and has a 16.8”-wide opening for a laptop screen
Touchpoint weights:
T7 Powered 132 lbs 59.87 kg
T7 Non-Powered 66 lbs 29.93 kg



Dimensions and Range of Adjustment

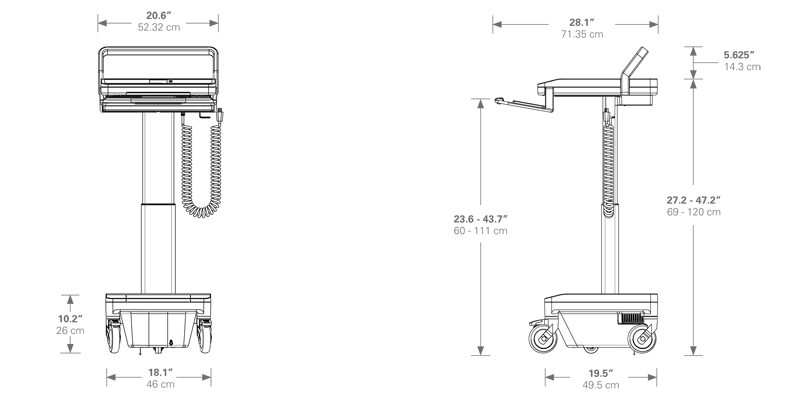

T7 Powered

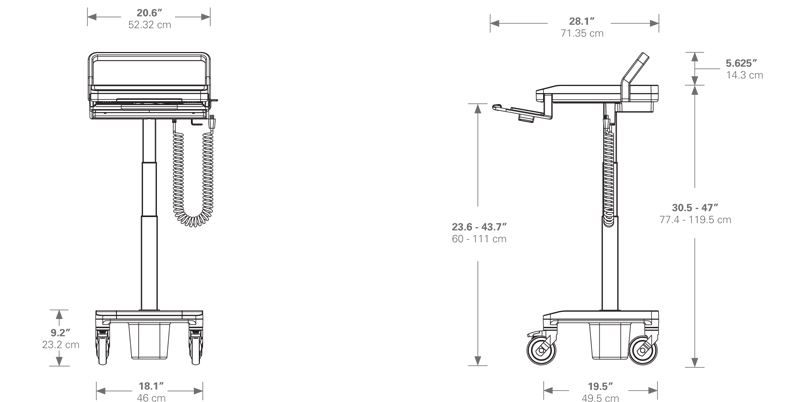

 T7 Non-Powered


Sustainabilityt7 point of care mobile cart

We work hard to ensure that our environmental philosophy is reflected in each product we create. With our Design for Environment protocol, our designers and engineers examine the environmental impact of every choice made throughout the design process—from initial concept through final production. We invite you to read more.

A selection of sustainability highlights for the V7:

  • Made predominantly of steel, which is highly recyclable
  • Ships in packaging that contains recycled content
  • SCS Indoor Advantage Gold Certified
  • Learn more about how we work to extend the life of our products through both design and engineering so they won’t need to be replaced often
  • Close the Loop program ensures that every product ends its useful life with a minimal environmental impact
